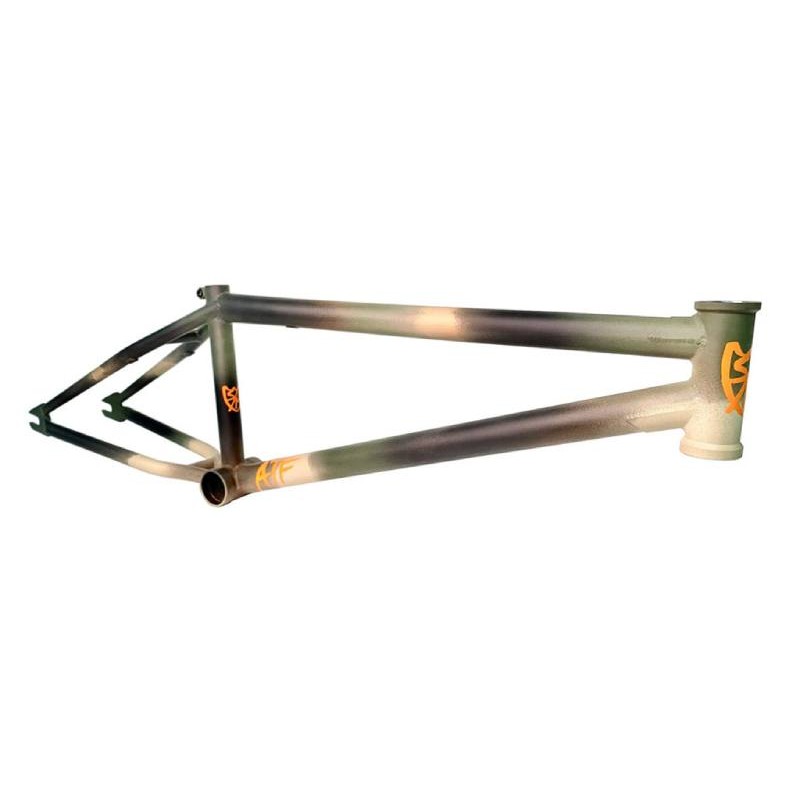

S & M ATF 20 TT Frame 20.75" Camo

S & M ATF 20 TT Frame 20.75" Camo
S & M ATF 20 TT Frame 20.75" Camo
S & M ATF 20 TT Frame 20.75" Camo
New
S & M ATF 20 TT Frame 20.75" Camo
S & M ATF 20 TT Frame 20.75" Camo
S & M ATF 20 TT Frame 20.75" Camo
S & M ATF 20 TT Frame 20.75" Camo
REQUEST A PRICE MATCH
Based on 0 reviews. - Write a review
$1,289.00
  • Stock: In Stock
  • Product Code: BX-SMFR002-04-CAM
S&M S&M
Add to Cart
Calculate Delivery
Add to Wish List Compare this Product

S & M ATF 20 TT Frame 20.75" Camo

ATF = “All Terrain Frame” and it truly is. Responsive geometry that works in the dirt, at the park or in the streets. The ATF is the foundation for many of our team rider signature frames, as well as a go-to for S&M employees. Easy to ride, easy on the eyes. A modern classic. 100% chromoly construction. Made in the USA.

Specifications:
BB style - Mid
Brake mounts - Thread-on 990 (mounts sold separately)
Gyro tabs - none
Weight - 2.12 kg
Tubeset - Butted Thermal-X Tubing

Geometry:
Top tube lengths - 20.5″, 20.75″, 21″, 21.25″,21.5″
Rear end length - 13.4″-13.875″
Head tube angle - 75°
Head tube style - Integrated (45°/45°, 41.8mm)
Seat tube angle - 71°
Seat clamp - Integrated
Seat post size - 1″ (25.4mm)
BB height - 11.7″
Standover height - 8.5″
Dropouts - 14mm slot, 4q-baked

CYCLES
BB Style Mid
Dropouts 14mm slot, 4q-baked
Headtube Integrated (45°/45°, 41.8mm)
Seat Clamp Integrated
Seat Post 1INCH (25.4mm)
Stand Over Height 8.5INCH
Top Tube Lengths - 20.5″, 20.75″, 21″, 21.25″,21.5″
Colour Camo
BB Height 11.7INCH
Brake mounts Thread-on 990 (mounts sold separately)
Gyro Tabs - none
Headtube angle 75°
Rear end length 13.4INCH-13.875INCH
Seat Tube Angle 71°
Tubeset Butted Thermal-X Tubing
Weight 2.12 kg
